29 Nov Abuja Light Rail System
The Abuja Rail Mass Transit commonly known as Abuja Light Rail is a new light rail network being developed in Abuja, the capital city of Nigeria. It is the first light rail system being developed in Western Africa, and second such system in sub-saharan Africa (after Addis Ababa Light Rail).
The first phase of the project connects the city center to Nnamdi Azikiwe International Airport, stopping at the standard gauge railway station in Idu. Launched on 12 July 2018, it opened for public passengers the following week.
The Abuja Light Rail System is mainly intended to reduce the traffic congestion and offer an enhanced travel experience to the commuters in the Federal Capital Territory (FCT) region of Abuja.
Abuja Light Rail Details
The Abuja Light Rail System is an integral part of the Abuja Rail Mass Transit System and the FCT Transportation Master Plan. Implementation is planned to follow in six lots, and a feasibility study for the remaining lots is currently under progress.
The project was initially proposed in 1997 but faced numerous delays due to funding issues. CCECC Nigeria was awarded a contract for the construction of lots one and three under the project in May 2007.
FM0 FC111111111:zzzzzz0 d101 078043874441663838014c0 bac2fd1572005416c145167b29381331c8e36bd1211e9c3d2c10f1995316d fd15002802 eb11d72259127 f931e3012d1c2836fb1331e3d3c8a139200b409813f20f7424613920503f28

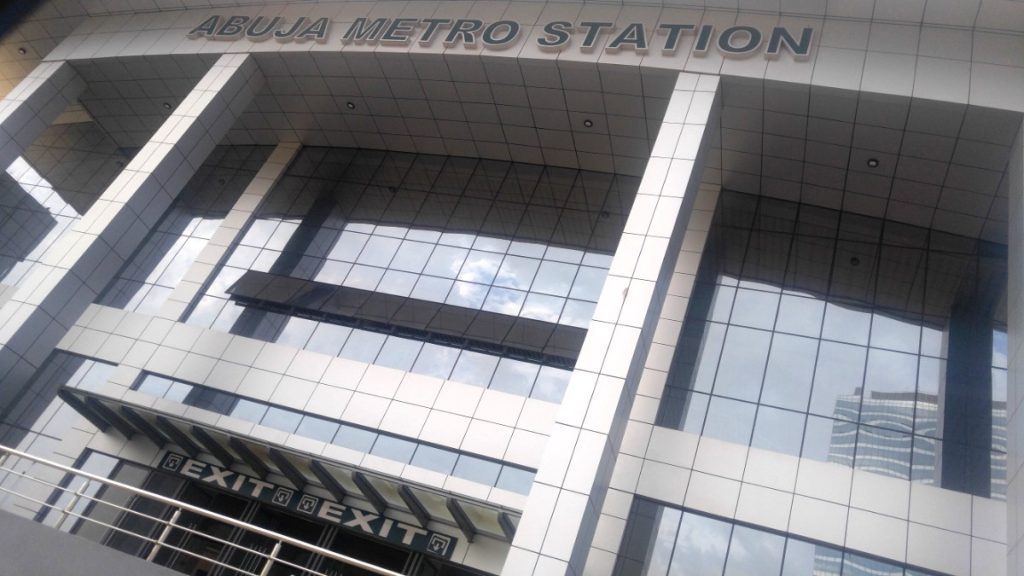

The light rail network developed under the first phase has a total length of 45.2km. Lot 1, also known as the Blue Line, has a length of 17.89km and connects Nnamdi Azikwe Expressway with the Abuja metro station (transportation centre) and runs through Gwagwa and Kubwa.

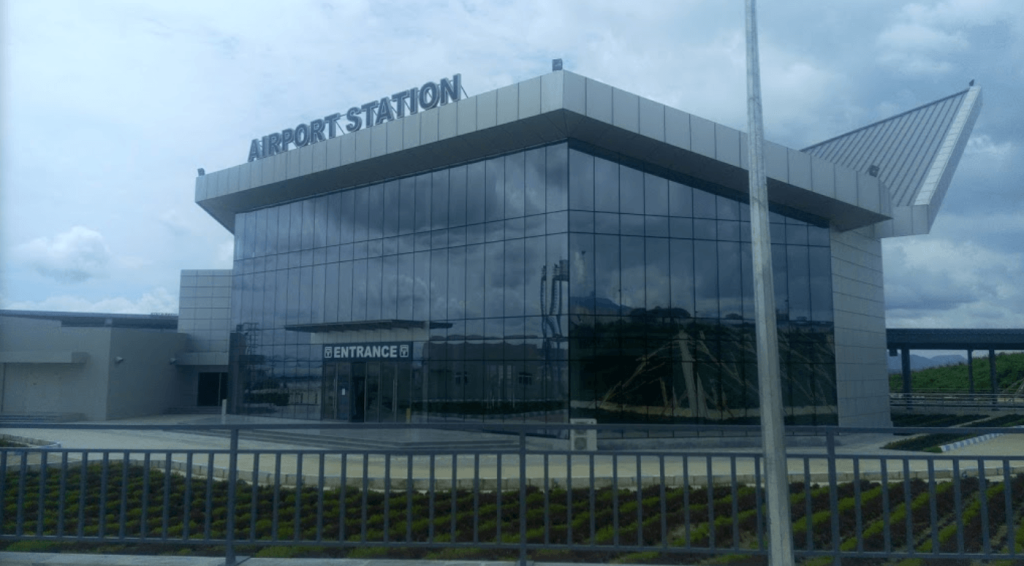

The 27.2km-long Lot 3, or the Yellow Line, connects the transportation centre with the Nanmadi Azikwe International Airport.
The two lines include 12 stations, 13 bridges, 21 operational offices, nine pedestrian overpasses, and 50 culverts.
A three-month test run was conducted prior to the commissioning of the light rail system
Planned Routes
The Abuja rail mass transit project Phase 1 consists of a ‘Lot 1’ and ‘Lot 3’ line.
Lot 1 Line consists of Lot1A and Lot1B line. Total length is 23.718 km (14.738 mi).

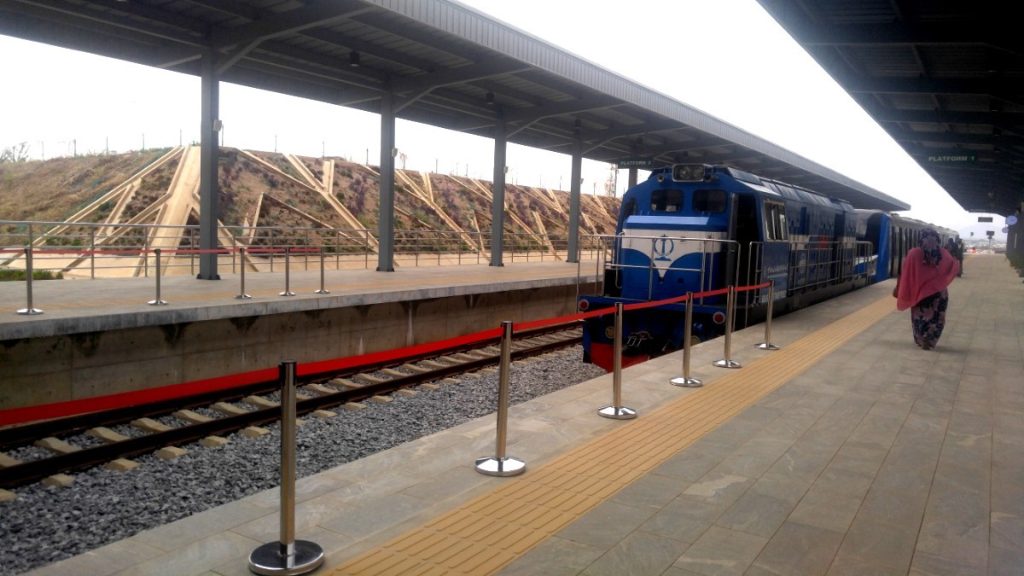

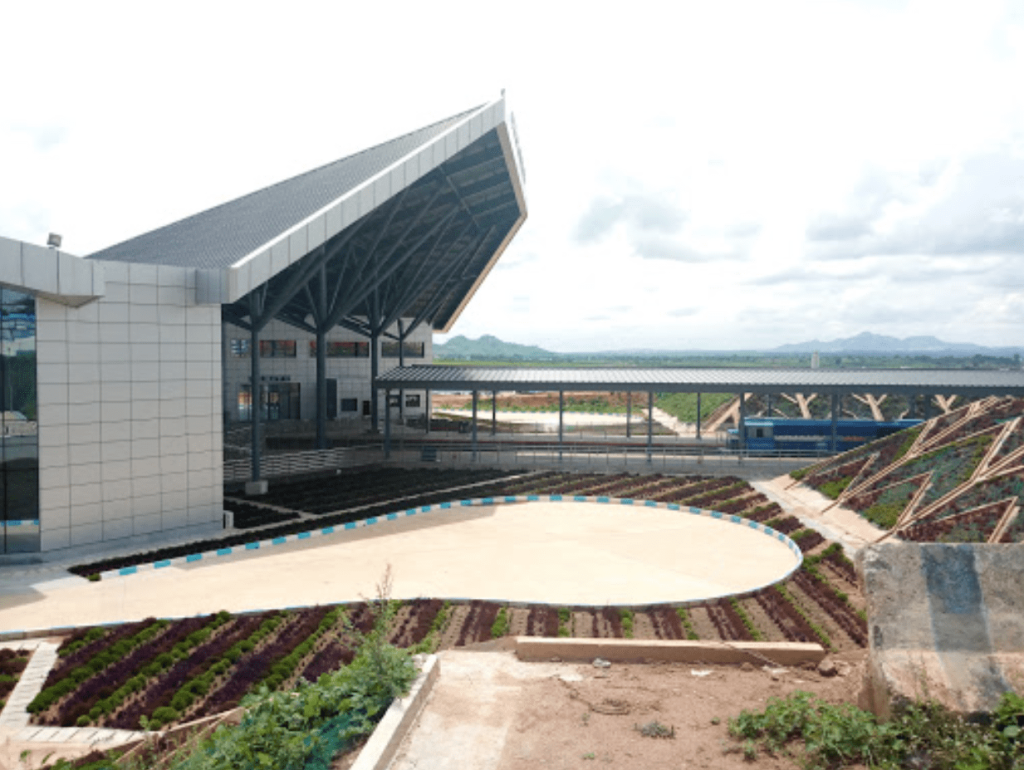

- Idu Station Terminal Outside
- Idu Station Route
- Idu Station Platform
FM0 FC010110000:zzzzzz0 f10f 078043874441663838014c0 bac2fd157 611 623145 3a6 389133 42c 42f121 4f9 51f10f 5da 5fa fd 5e6 628 eb 516 54e d9 450 463 c7 3ae 39c103 343 303109 55a 59210f 59b 5ee115 5f7 66111b 615 673115 60c 676

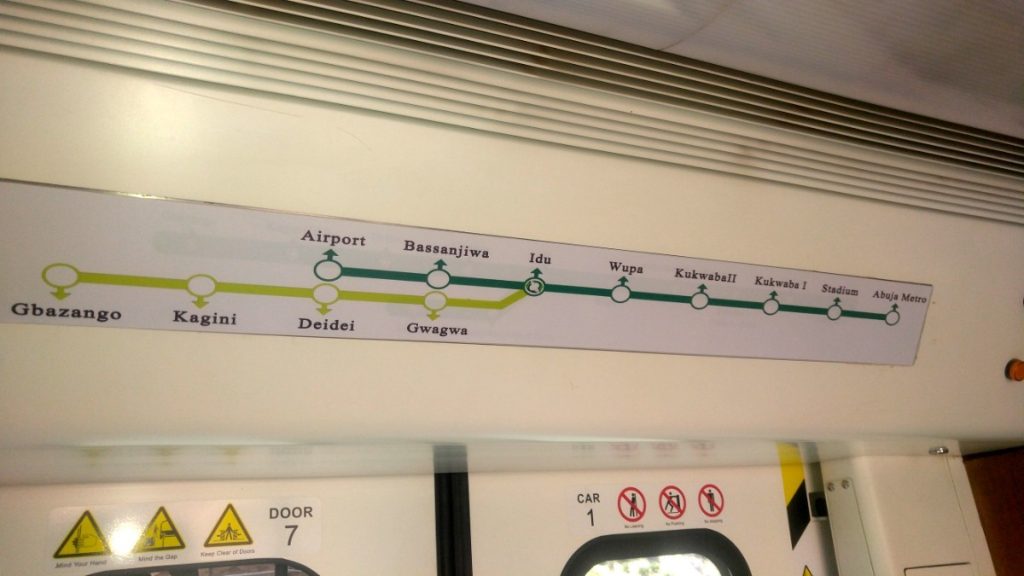

Lot 1A (Proposed Stations) – Idu – Gwa Gwa – Dei Dei – Jibi – Gbazango – Byazhin – Kubwa
Lot 1B (Proposed Stations) – Ring Road 1 – Garki – Transportation Centre – Wuse – Employment Centre – Utako – Jabi I – Jabi II – Ring Road III – Gwarinpa – Karmo
Lot 3 (Proposed Stations) – Abuja – Stadium – National Park – Ring Road II – Wupa – Idu – Airport North – Airport
The complete network is planned to link Abuja with satellite towns such as Nyanya, Kubwa, Mararaba and Lugbe. Centenary City also plans to incorporate a light rail connection linking to the Nnamdi Azikiwe International Airport and the Central Business District.
Some of the lines extend from the Federal Capital Territory into the neighboring states.
